PRINCIPLE

The spectral absorption of water provides the CO2 Surgical Laser with the ability to coagulate, vaporize, or cut, tissue depending on the power density and the energy level applied by the surgeon. When the laser beam is defocused, the laser vaporizes the soft tissue, and when the laser is focused the laser can cut like scalpel.

The laser beam is a highly concentrated and powerful beam of light that interacts with tissue in some extraordinary ways. Surgeons use CO2 lasers because of their outstanding precision. The laser beam is so accurate that an area less than one millimeter in diameter can be treated, while scarcely affecting surrounding tissue. Moreover, CO2 laser surgery is implemented in microsurgery and in rigid endoscopy, enabling surgical precision to a fraction of a millimeter

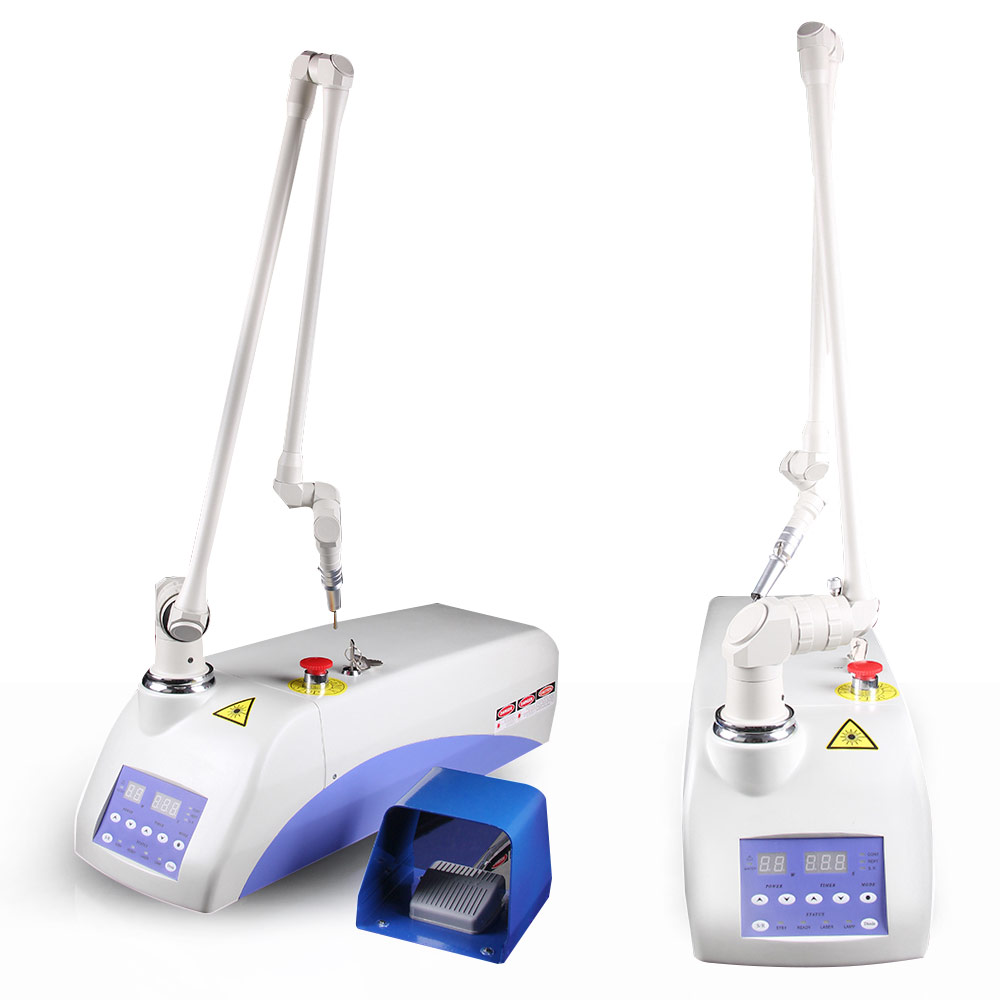

FEATURES

Compact and easy to operate
Sealed-off CO2 laser technology
CW, repeat pulse, and super pulse operation modes
7-joint spring-balanced articulated arm
Pilot beam of 5mW diode laser
Safety protection with alarming automatically

SPECIFICATION

Laser type DWJPC015-A CO2 (sealed off)
Wavelengths 10.6microns
Mode Structure TEM00
Power to tissue 15W
Laser operation modes Repeat. CW. Super.
Super pulse peak power 100W
Aiming beam 3mW Diode
Beam delivery system 7-joint spring-balanced articulated arm
Working radius 110cm
Cooling system Water closed-cycle
Control system Microprocessor control
Warranty 1year
Electrical 230VAC/50Hz or 120VAC/60Hz
Package dimensions (cm) 102x37x47cm
Gross weight by carton (kg) 28kg

APPLICATIONS

General Surgery: haemangioma, adipoma, steatoma, rectal cancer

Oral Surgery: epulis, buccal haemangioma, mucous cyst, lichen planum

Otolaryngology: auricle vegetation, nose tumour and tumor of paranasal sinus, benign tumour of oropharynx, gular haemangioma, vocal polyp, laryngo-carcinoma, chronic pharyngitis, chronic rhinitis, chronic laryngitis

Urology: meatus urinary condyloma, redundant prepuce, caruncle of urethra, polyp of penis

Gynecology: myoma of uterus, cervical erosion, cervical polyp, vagina condyloma

Dermatology: wart, common wart, venereal wart, herpes labial, herpes zoster, nevus pigment, cutaneous malignant tumour

Cosmetology: dispel wringkle tache, stains of face nevus, vegetation and underarm odour
